SILVAN 500L LINKAGE OKTOPUS SPRAYER - MIN 50PTO HP

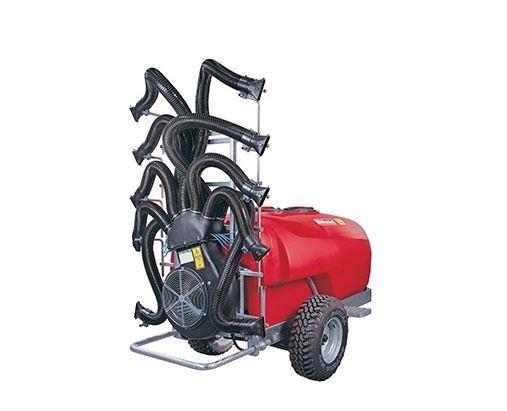

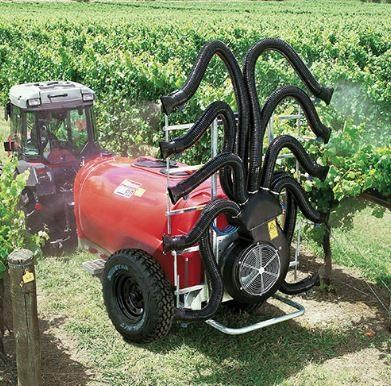

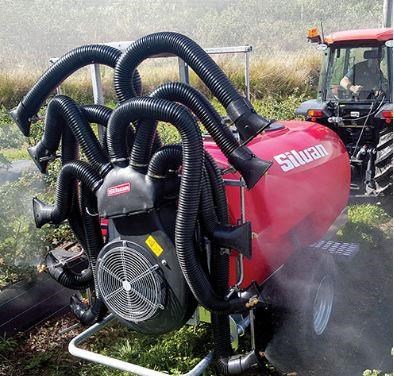

Linkage air assist Oktopus 500 litre sprayer with a 88 L/min diaphragm pump, 10 outlets (five per side) for targeted spraying and electric valve controls. Ideal for vineyards and berries. Note: images shown are of the Oktopus 2000L.

Specifications:

Market: Horticulture, Viticulture
Tank Size (L): 500
Connection Type: Linkage
Min PTO HP: 50
Pump Size (L/min): 88
Height / Width / Length (mm): 2325 / 1190 / 1400
Product Weight (kg): 250 (dry)
Application: Vineyards and Berries.

Features:

Pump: Silvan oil-backed diaphragm type with nitrile diaphragms, corrosion resistant, cast anodised aluminium body. APS96: 88L/min. capacity, 5000kPa pressure

Fan size: 450mm diameter turbine fan, 10 fishtail outlets.

Nozzles: Flip-over type for dilute/concentrate spraying with ceramic hollow cone nozzles and 10 nozzles (5 per side) twist on/off.

Gearbox: Two speed with neutral position, oil-bath type.

Control: 40 bar electric section valves, master valve, electric pressure regulator and in cab controls.

Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, non-spill lid. 80L flush tank and 15L hand wash tank fitted to 1,000L unit. 40L fresh water tank fitted to 2,000L unit.

Frame: 500L: Galvanised steel, suit cat I & II linkage

Agitation: 500L: Dual bypass

Pressure Gauge: 63mm, 0-60 bar glycerine filled gauge (500L unit)

Filtration: Lid strainer and suction line strainer

PTO Driveshaft: Quality driveshaft with quick release pins and safety cover

HP Required: 50PTO HP

Options:

- Bravo 180S automatic rate controller (D99-143)
- Narrow Oktopus fan (D99-82)
- Flotation tyres - 400/60 x 15.5" with fixed axle (in lieu of standard singles) (D99-80)
- Quick turning hitch (2000L only) (D99-170)
