Features

Title SILVAN 3,000L (2 ROW) TRAILED TURBO SCRAM TURBOWRAP - MIN 65PTO HP
Make SILVAN
Sale Price $126,445
Listing Type New
Stock Number STU68HB5S2
RefCode TA1162505
Tractor ConnectionTrailed
Tank Capacity - l3000

Description

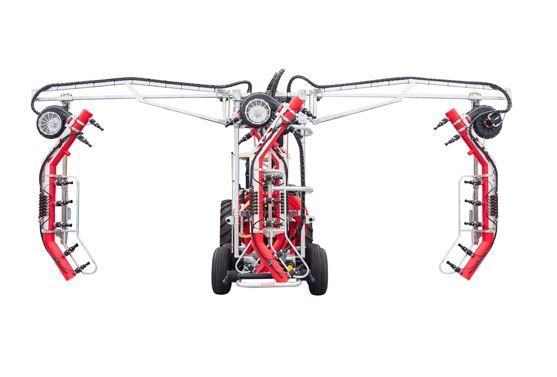

3,000L Turbo Scram Trailed 2 Row Turbowrap: Includes sprayheads 4 x 320mm fans, Hydraulic drive stainless steel pump, automatic spray rate controller, self-contained hydraulic drive system, tandem suspension axle.

Specifications:

Market: Horticulture.
Tank Size (L): 3,000
Connection Type: Trailed
Min PTO HP: 65
Pump Size (L/min): 350
Height / Width / Length (mm): 3480 / 1755 (less head), 2576 (folded) / 4850
Product Weight (kg): 1,500 (dry)
Application: Vineyards

Features:

Head: Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Three row spraying head: 42 venturi air shear adjustable nozzles with individual metering and on/off taps. Left & right arms are independent hydraulic folding with adjustable width & centre frame. Boom frame is galvanised.

Pump: Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal. Driven by tractor remotes.

Fan Size: 320 mm turbine fan, one per air tube, 3600 rpm. Power consumed 29 kw / 38HP

Hydraulic Control: Hitch mounted hydraulic power pack with; 40L oil reservoir with cartridge particulate filter, motors fitted with case drain, hydraulic distribution block incorporates anticavitation and pressure relief valves, 12V oil cooler

Nozzles: Air shear.

Controls: Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.

Frame: Galvanised steel chassis, linkage hitch fitted with hydraulic power pack

Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and hand wash tank. (205L flush tank on 3000L)

Agitation: Venturi agitator.

Filtration: Lid strainer and large capacity suction filter.

Wheel Equipment: Tandem suspension axle with 10 x 15" tyres (3000L) or 11.5 x 15.3" tyres (4000L).

PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.

HP Required: Minimum 65 PTO HP (2 row), Minimum 80 PTO HP (3 row).

Options:

- Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)
- IBX 100 ISOBUS controller (in lieu - requires compatible in-cab console) (J99-181)
- Hydraulic row width/height adjustment
- Hydraulic pump driven through power pack (D99-185)
- 100L flush tank (to suit 4000L) (J99-112)
