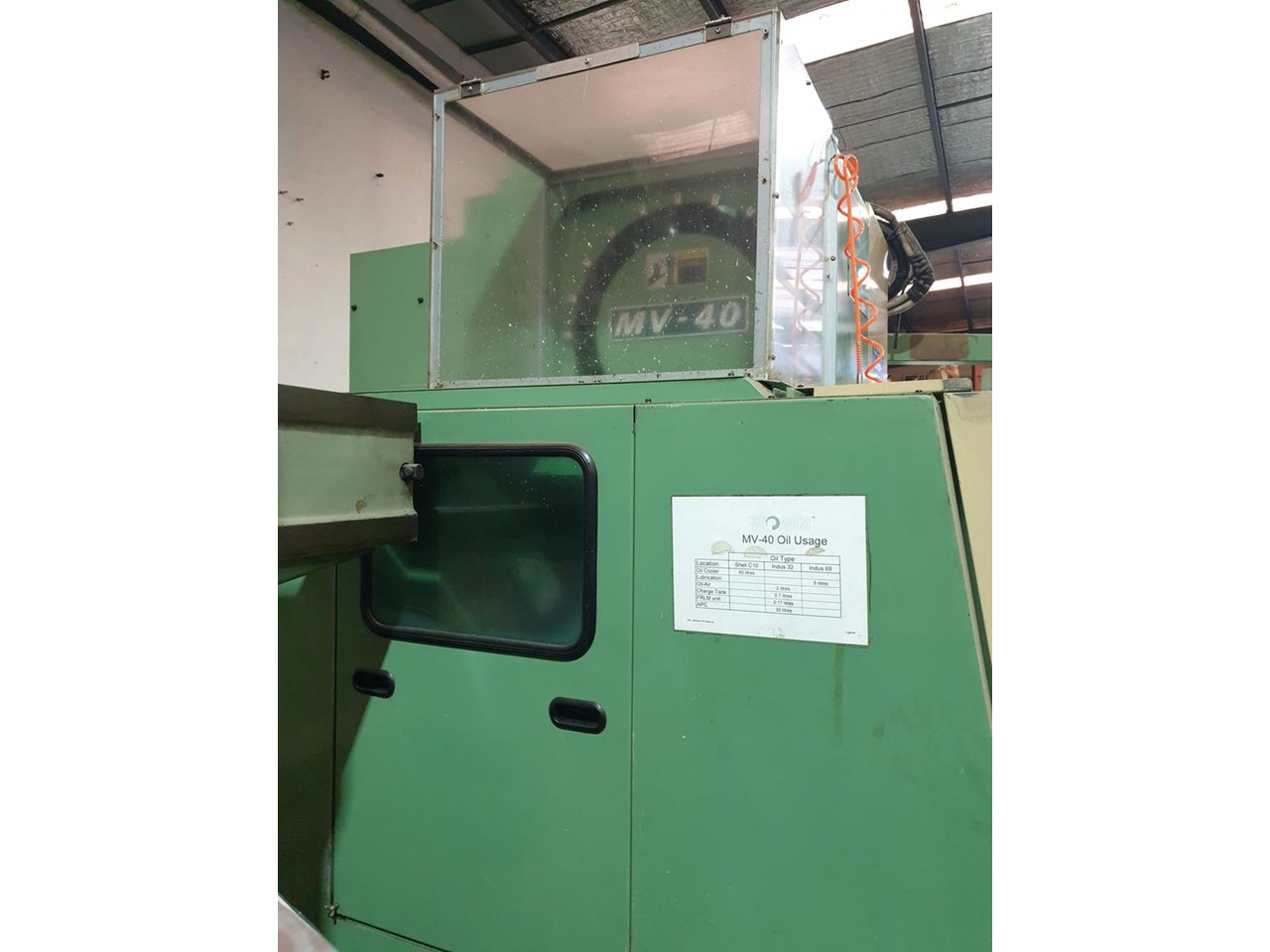

MORI SEIKI MV40A

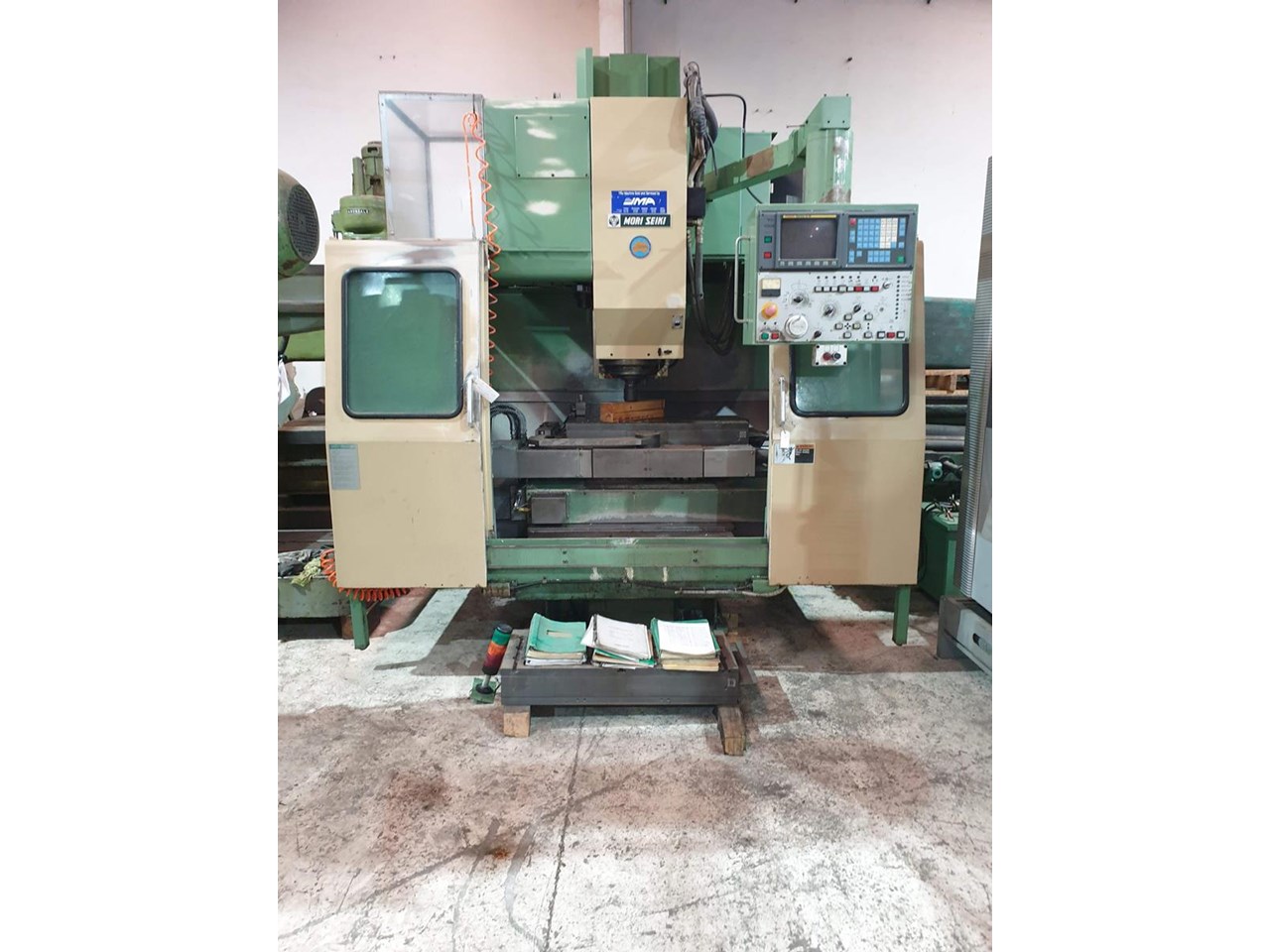

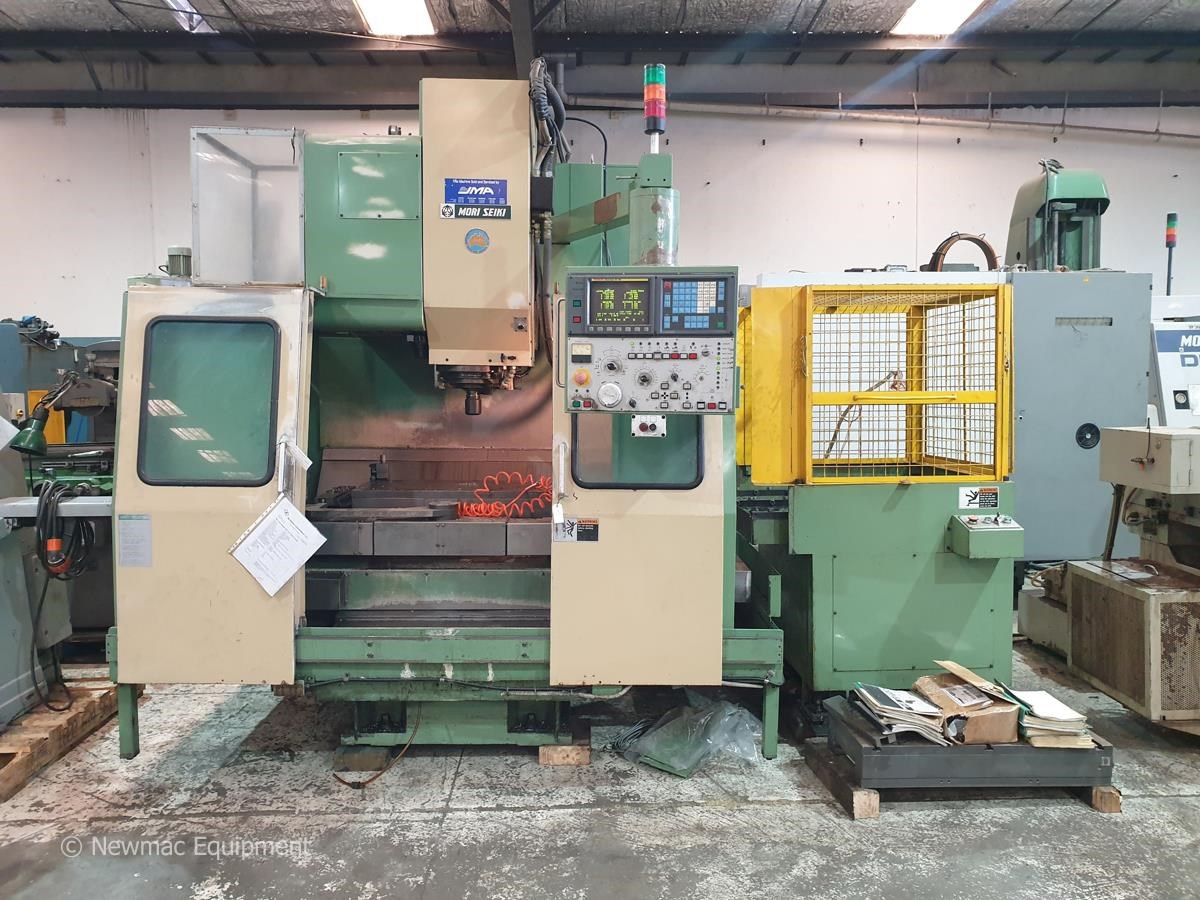

We have a Mori Seiki MV40A Vertical Machining Centre and Pallet Changer for sale

Stock # 4117

Technical Data Snapshot

Made in Japan
Pallet size 380mm x 700mm
X/Y/Z travel 600mm x 410mm x 510mm

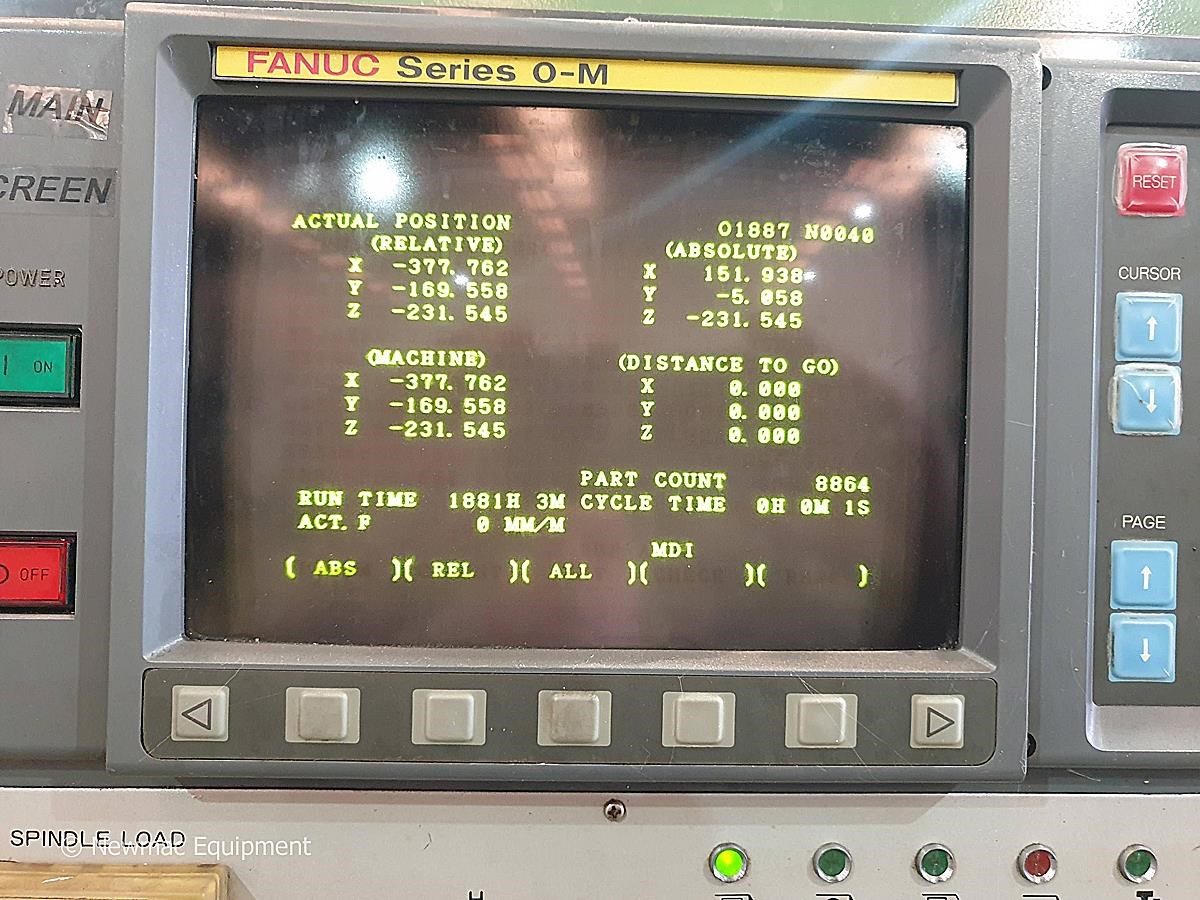

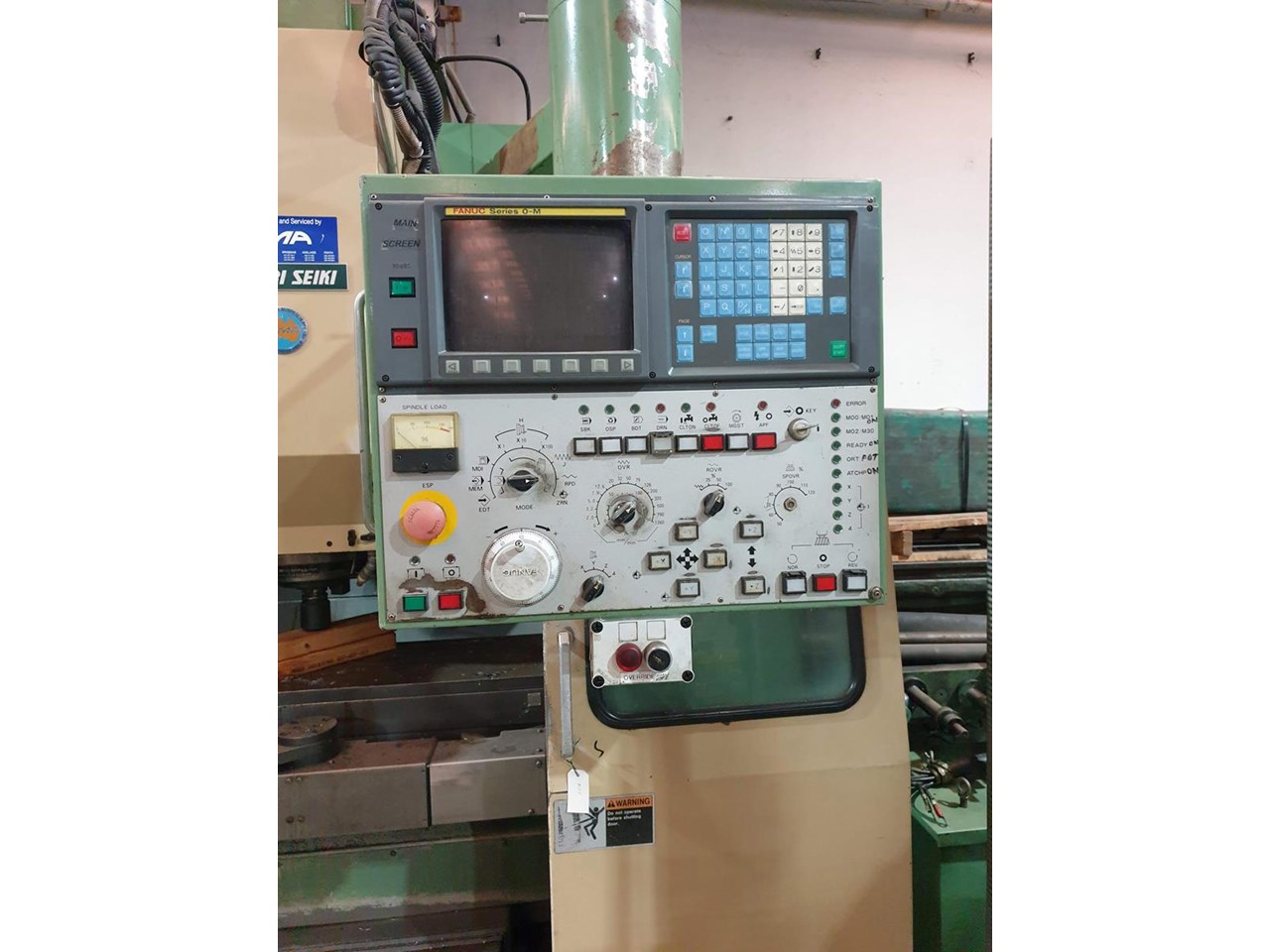

Control Type Fanuc Series OM
Max spindle speed 8,000rpm
Spindle taper BT 40
Max programmable Feed Rate 5m/min X/Y/Z
Rapid Feed Rate 20m/min X/Y
Rapid Feed Rate 15m/min Z
Max Pallet Load 300kgs
Number of tools that can be held in the tool carousel 20
Spindle Motor Hp/Kw 5.5hp, 7.5kw 30 min rating
Flood type coolant System
Machine power requirements 3 phase 415 volt
Stroke for pallet 947.7mm
Pallet Change Time 12 seconds
Machine Dimensions for Transport, including control cabinet 2,500m wide x 2,260mm front to back x 2,650 mm high
Machine Weight Approx. 5,700kg

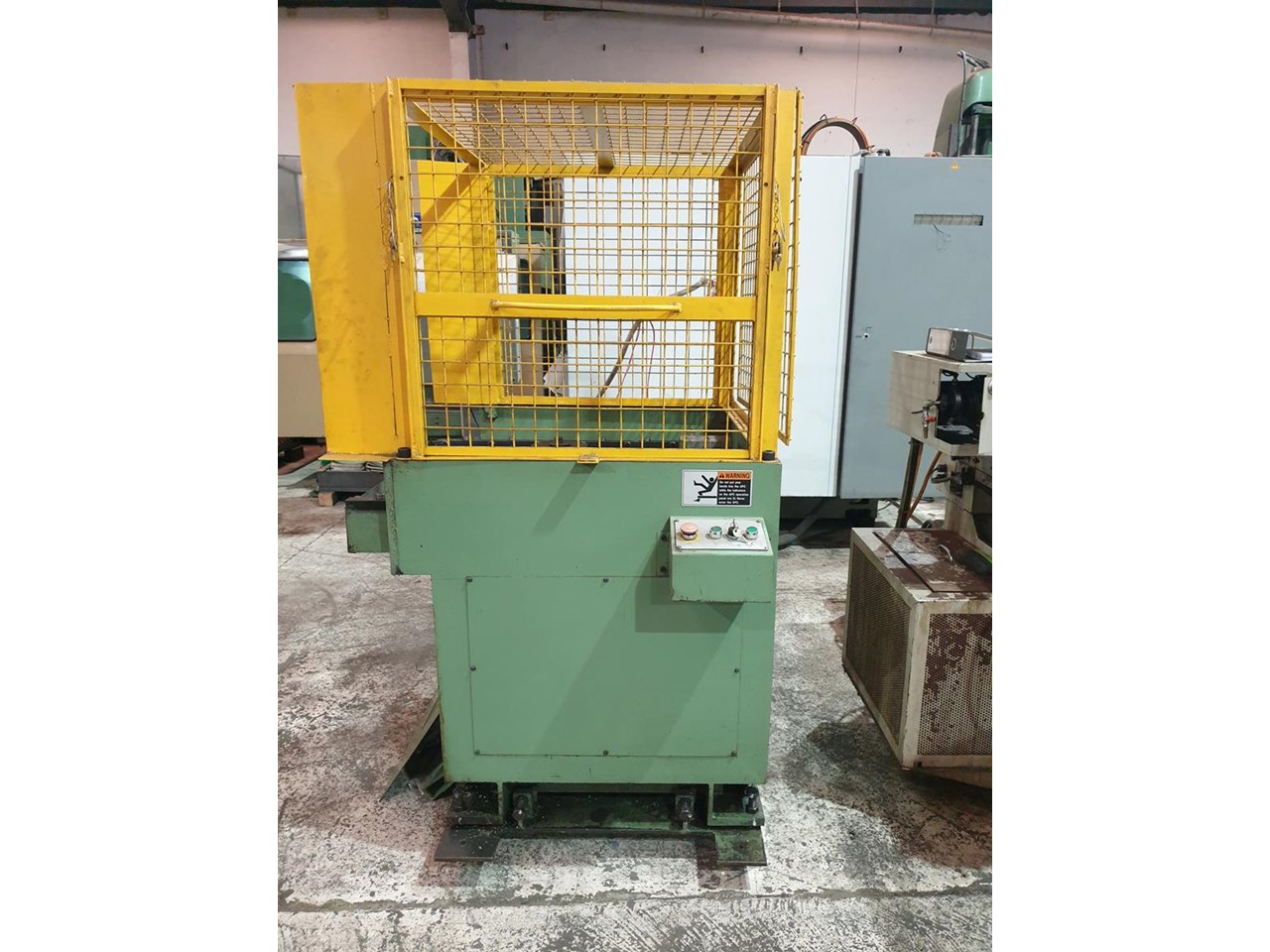

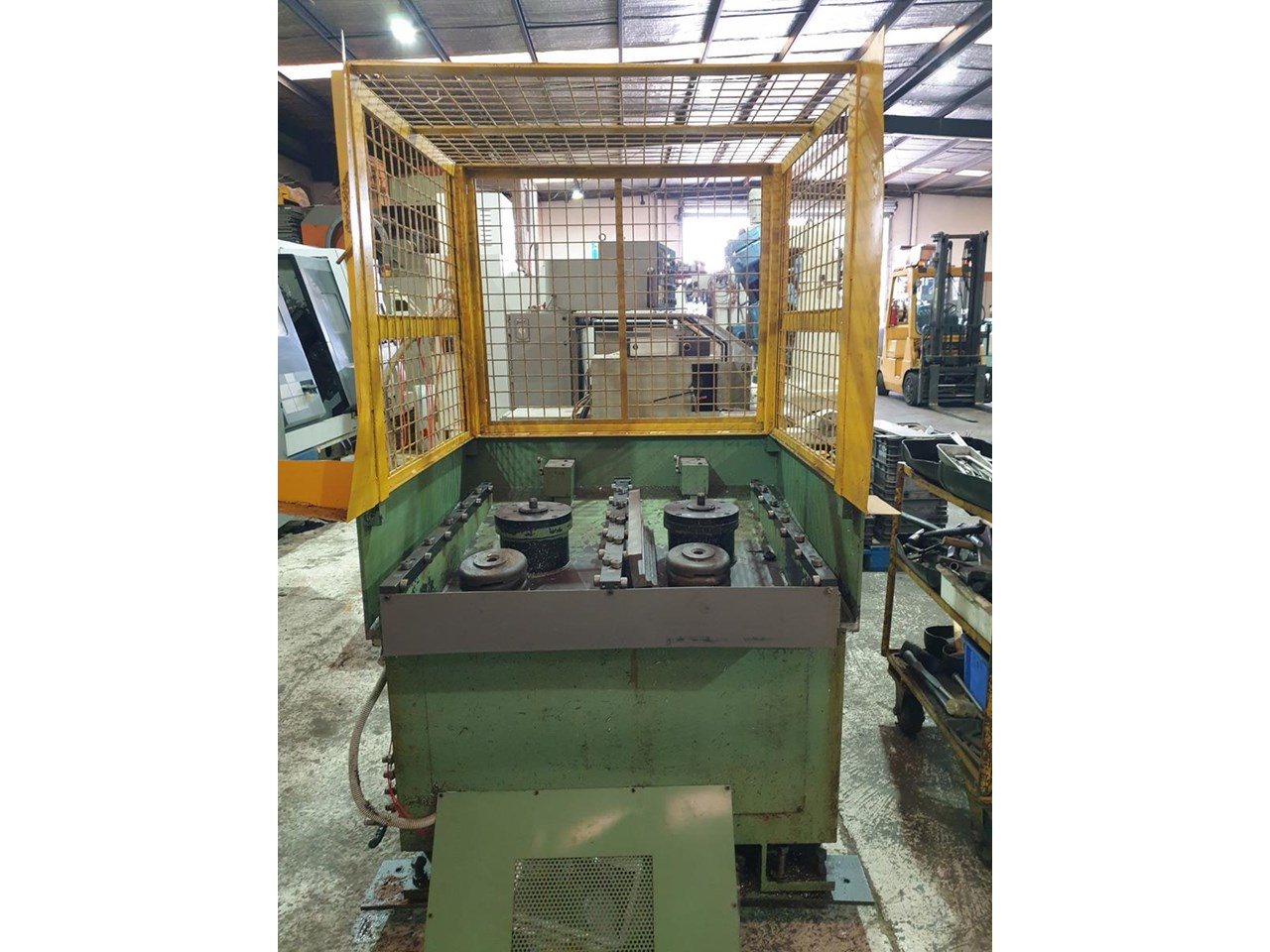

Pallet Changer Dimensions for Transport 1,030mm x 1,110mm x 1,900mm High
Pallet Changer Weight 550kg
Pallet Dimensions 1,000mm x 390mm x 150mm High
Transformer Dimensions for Transport 530mm x 650mm x 520mm High
Transformer Weight 300kgs

Accessories

10 x BT40 Tooling

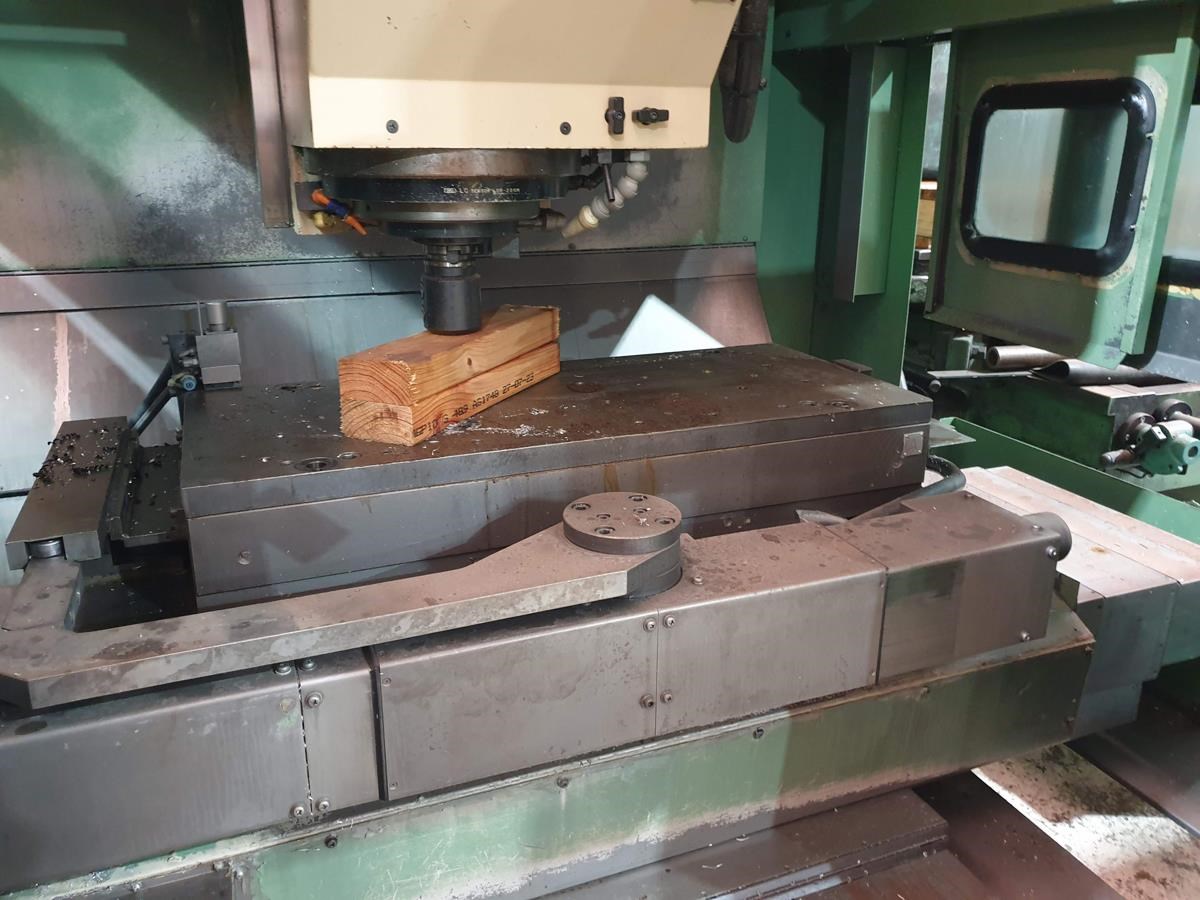

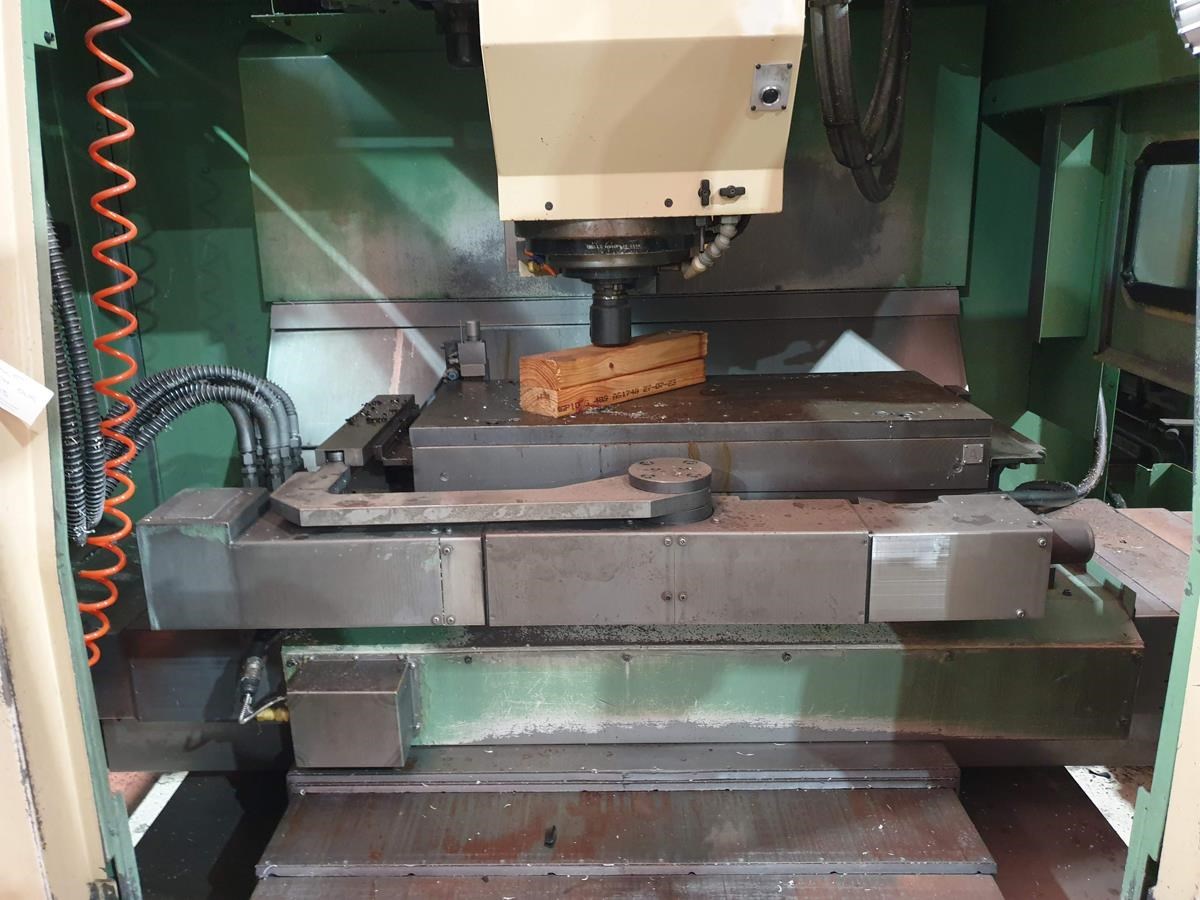

2 x Pallets
Spindle Chiller
Coolant System
Worklight
Transformer

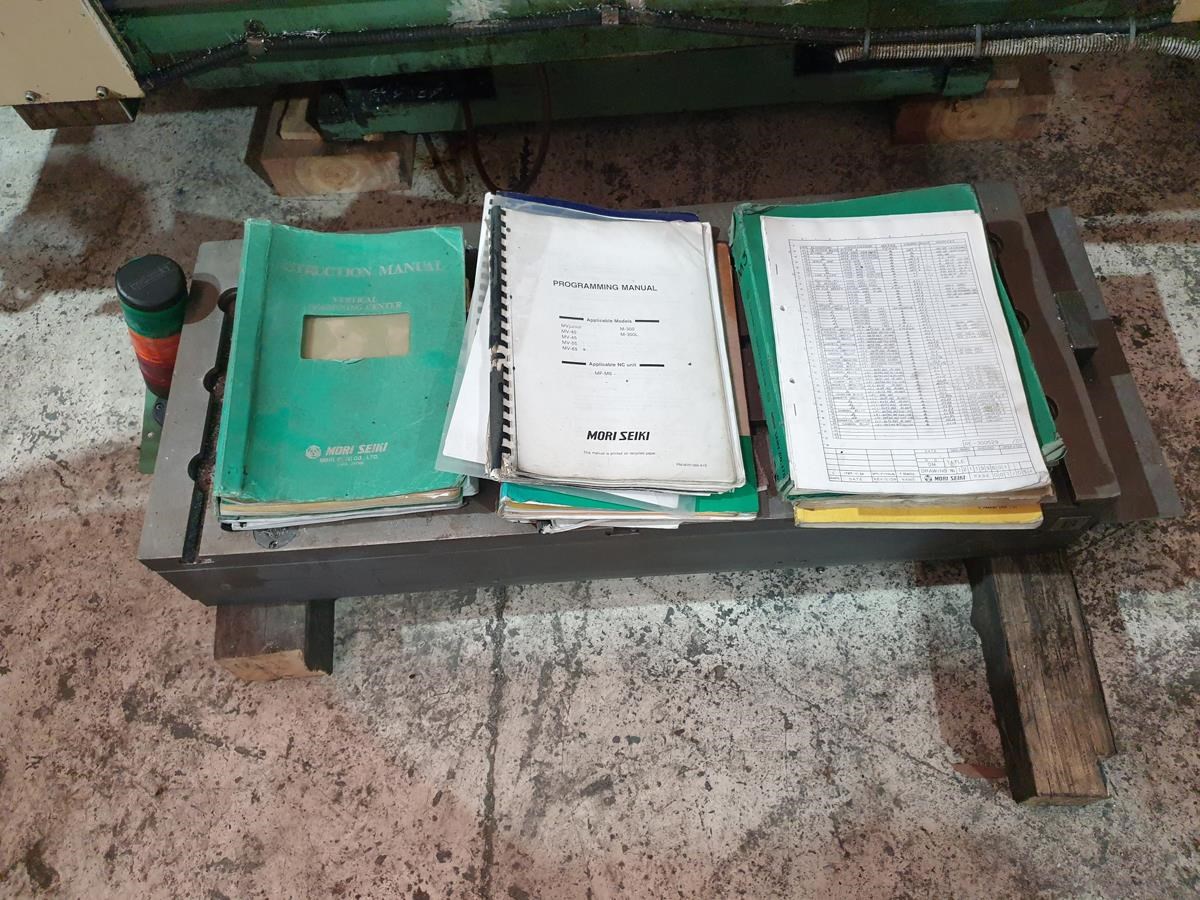

Machine Manuals


3 Phase Power

Please note this machine does not include a plug. When 3 phase machinery is decommissioned from industrial use, it is often disconnected from a switchboard by an electrician, meaning no plug is fitted and in some cases the cable may also be absent. As a machinery dealer, we are not electricians and are unable to supply or fit plugs. Buyers will need to arrange connection through a licensed electrician.

We have not run this machine in our warehouse but it was working at Customers prior to it being de-commissioned.

This CNC Milling Machine is in our warehouse so please feel free to pop in to inspect the machine at your convenience.
