Contact Seller
Features
| Title | HAFCO METALMASTER HM-54GV |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | HAFCO METALMASTER |
| Model | HM-54GV |
| Sale Price | $8,190 GST Exclusive |
| Listing Type | New |
| Stock Number | 345480 |
| RefCode | TA1275928 |
Description

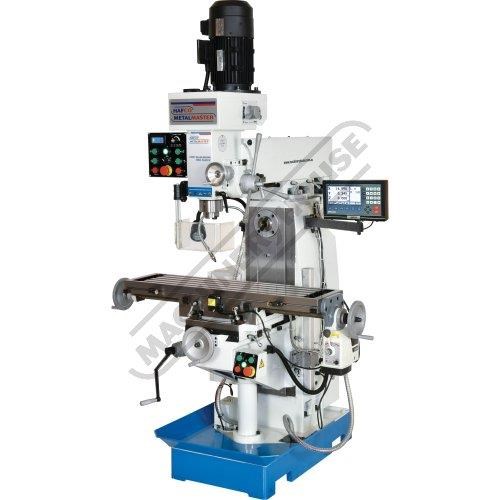

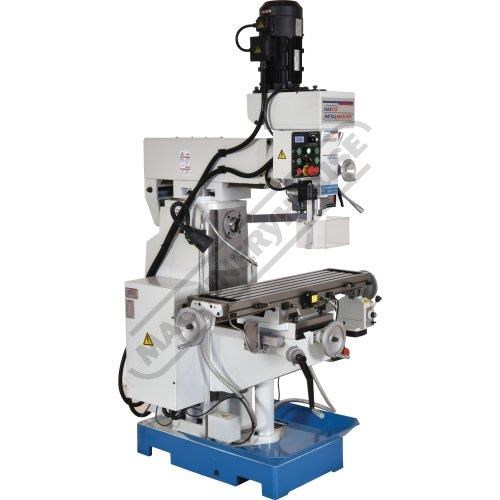

HM-54GV Workshop Turret Milling Machine Inverter Variable Speed, Geared Head - Horizontal & Vertical
HAFCO-METALMASTER HM-54GV Workshop Turret Milling Machine Inverter Variable Speed, Geared Head - Horizontal & Vertical Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm Includes Digital Readout System & Swivel Table
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M579

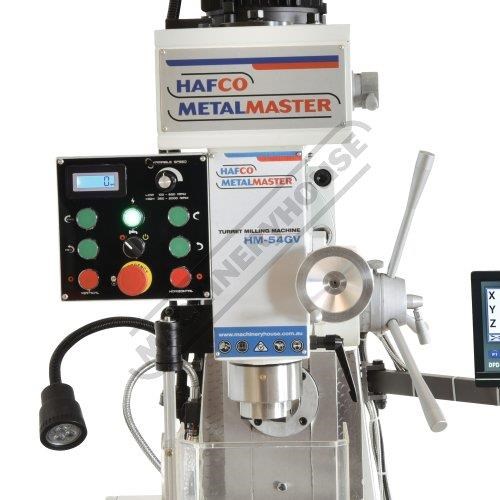

This HM-54GV geared head vertical and horizontal turret milling machine now includes a inverter variable speed drive on the vertical spindle, with a powerful continuous-load 2.2kW / 3hp vertical motor and a 2hp motor for the horizontal spindle, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The hi-low geared head selector lever mounted on right side of milling head allows for quick change off speed range.
Other features include 3-Axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage LED work light, coolant system, X axis power feed unit, drill chuck, 1`` & 1-1/4`` horizontal arbors, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.
Extra Features:
Swivel table
1`` & 1-1/4`` horizontal arbors
Features:
Electronic inverter variable spindle speeds

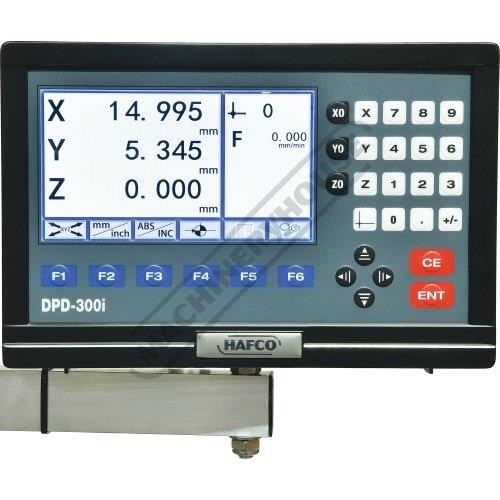

3 Axis digital readout system

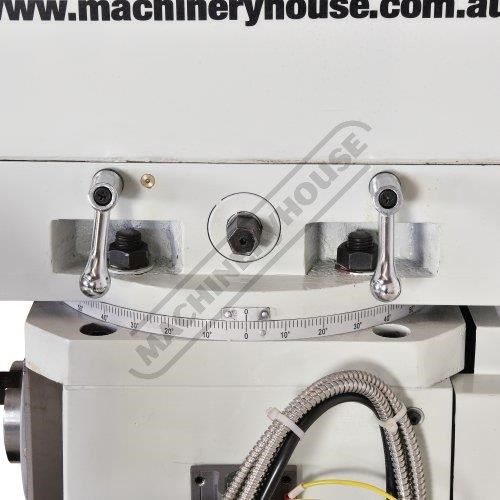

Swivel table left & right with graduated scale

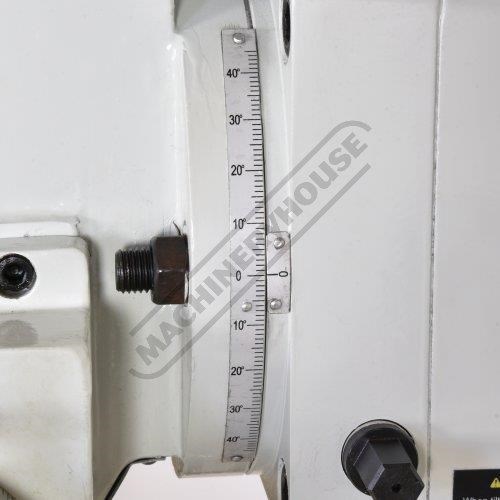

Mill head tilts to ??45?? left to right

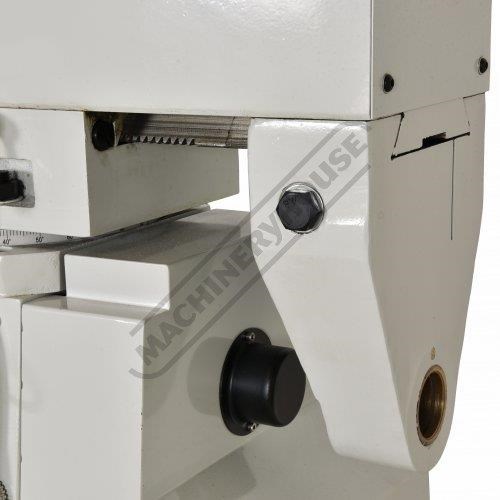

450mm horizontally sliding and rotating ram

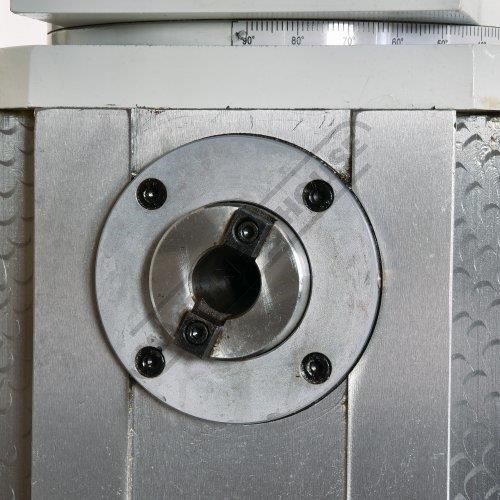

NT30 Horizontal and vertical spindles that are hardened and ground
Precision-ground dovetail slide-ways and table

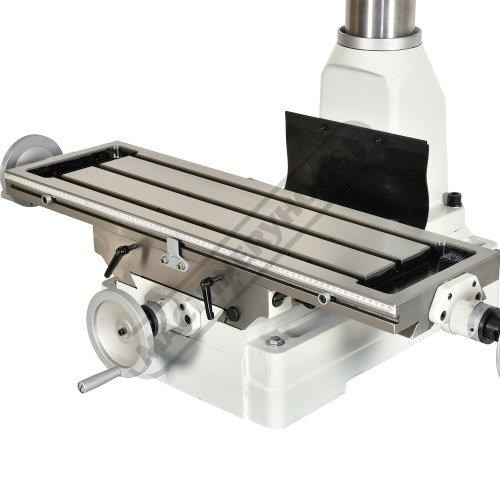

Precision milling table incorporating machined T slots

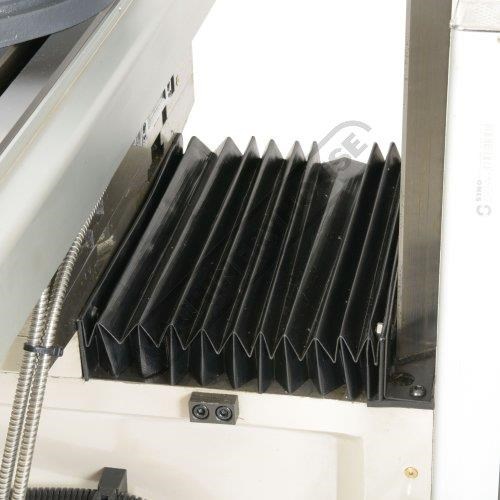

Rear concertina slide-way cover

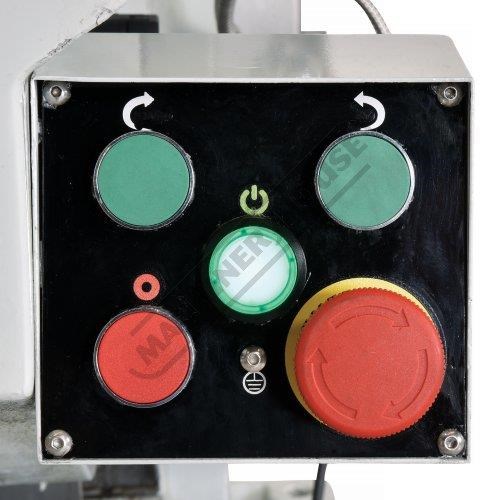

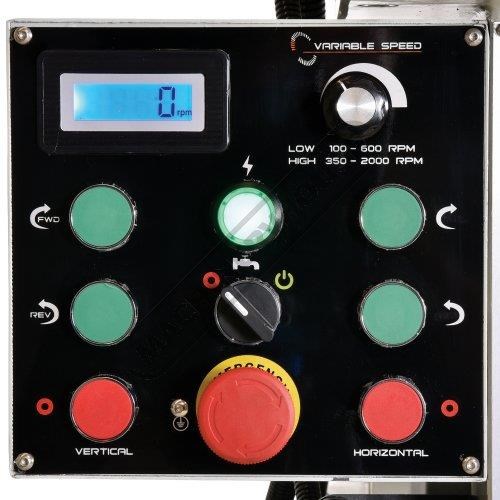

Forward and reverse button switch

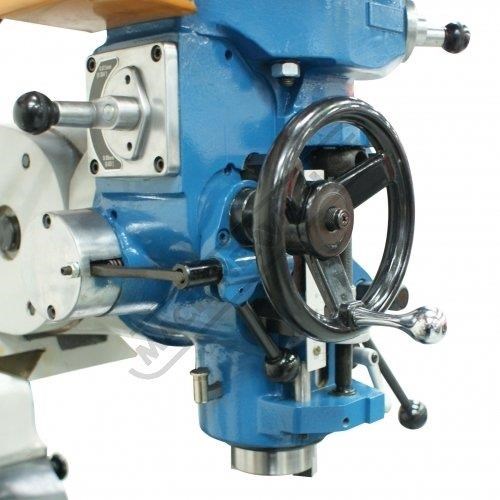

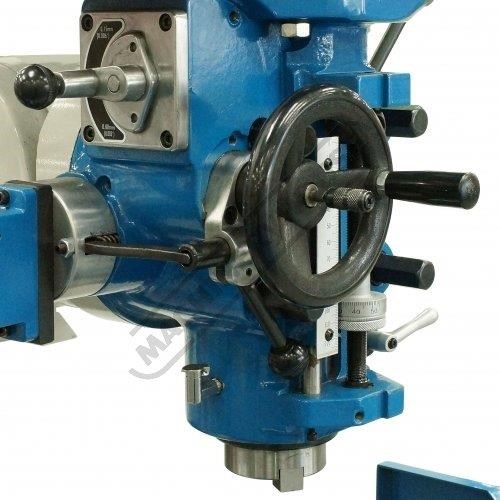

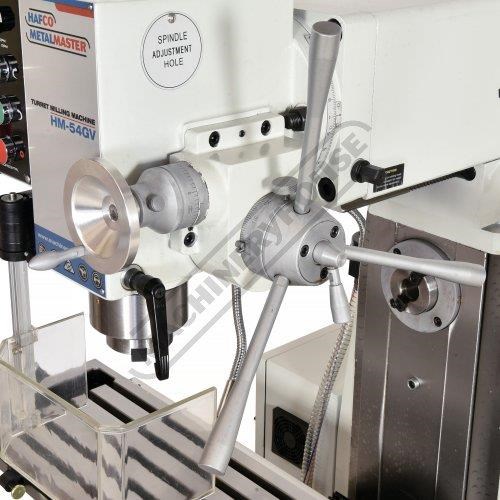

Fine hand wheel operated quill feed
Swarf & splash tray

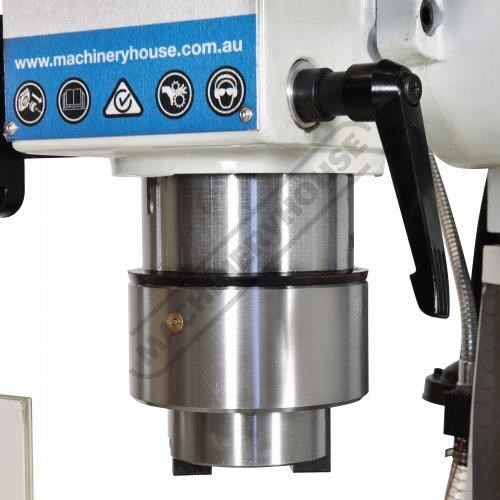

Spindle lock for quill
Metric dial graduations @ 0.02mm for X Y & Z-Axis

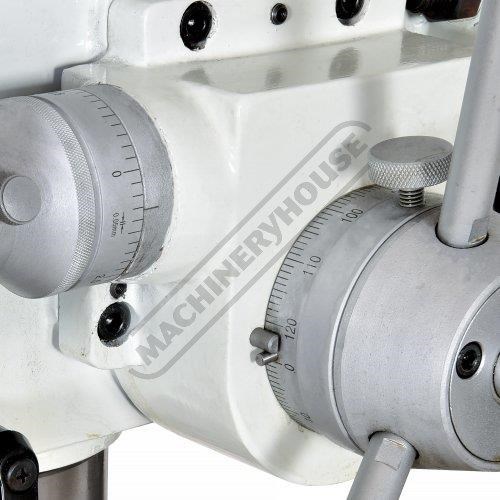

Vertical quill hand-wheel dial graduations @ 0.05mm
All slides utilise dovetail construction for maximum rigidity
Includes 1`` & 1-1/4`` arbors for the horizontal spindle
Includes:
- Electronic inverter variable spindle speeds
- 3 Axis digital readout system
- X-Axis power-feed

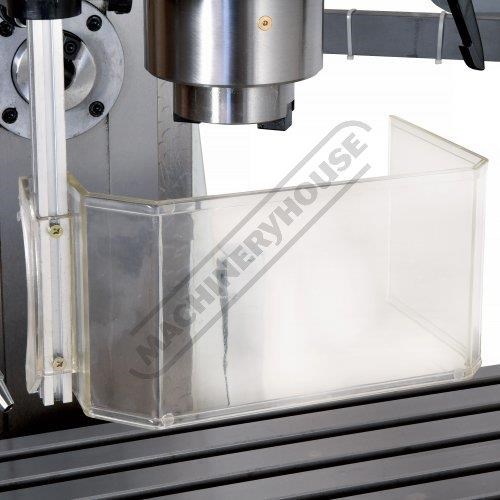

- Safety cutter guard
- Swarf tray

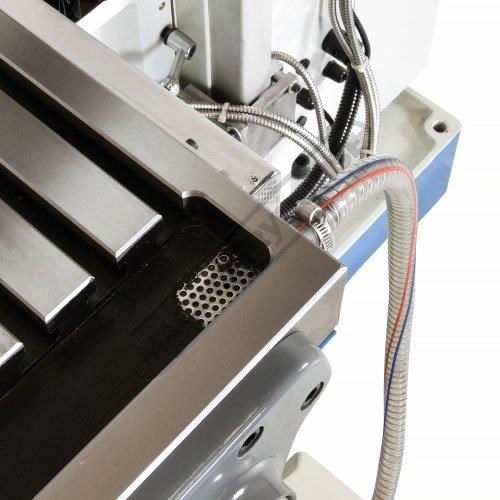

- Coolant system

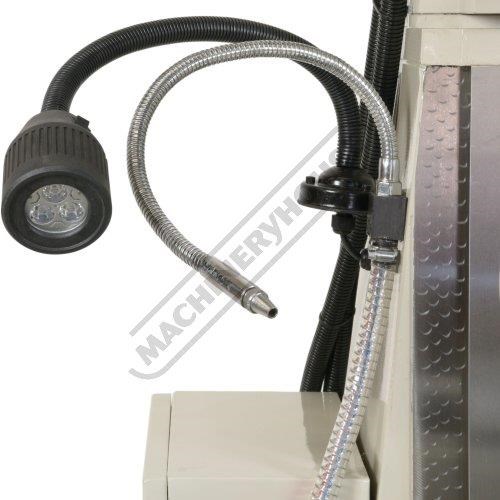

- LED work light
- Drill chuck & arbor
- NT30 to 3MT adaptor
- 2MT & 3MT adaptors
- M12 x 1.75mm Drawbar
Specifications:
ORDER CODE: M579
MODEL: HM-54GV
Digital Readout: 3-Axis Digital Readout
Type: Vertical & Horizontal
Table Size (mm): 1000 x 240
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: NT30
Longitudinal Travel (X-Axis) (mm): 600*
Cross Travel (Y-Axis) (mm): 200*
Vertical Travel (Z-Axis) (mm): 340
Type of Slides: Dovetail
Ram Travel (mm): 450
Spindle to Table (mm): 375
Spindle to Base: ~
Spindle Travel / Diameter (mm): 120 / 90
Throat Depth (max.) (mm): 640
Tilting Head (Left ~ Right): ??45??
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 40
End Milling Capacity (mm): 25
Face Milling Capacity (mm): 80

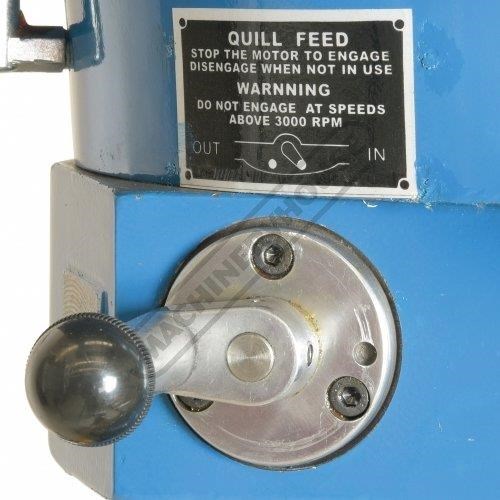

Power Feed - Quill (mm/rev): Manual
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional *
Power Feed - Vertical (Z-Axis) (mm/min): Optional *
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 160

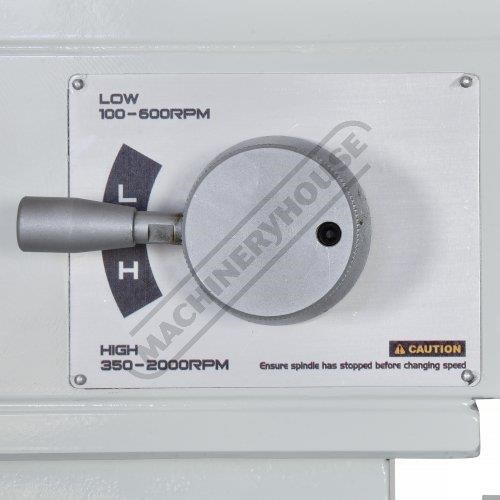

Spindle Speeds Vertical (No./ rpm): Variable (100 - 2000)

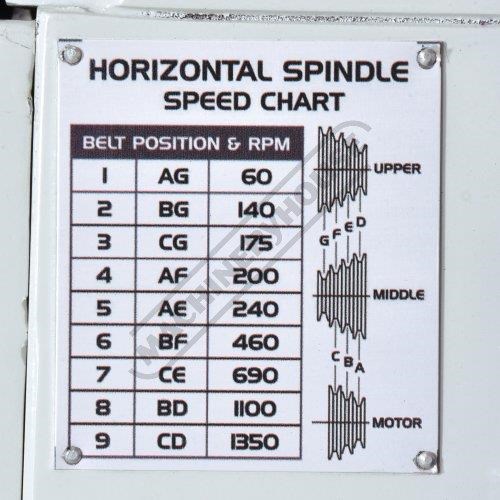

Spindle Speeds Horizontal (No./ rpm): 9 (60 - 1350)
Spindle Speeds - Universal Head: ~

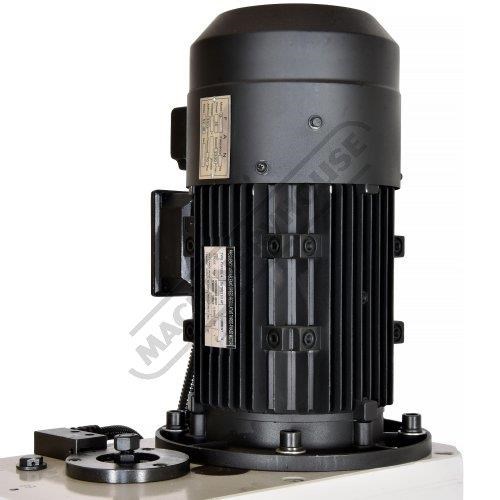

Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): 1.5 / 2
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 900
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M579'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
HAFCO-METALMASTER HM-54GV Workshop Turret Milling Machine Inverter Variable Speed, Geared Head - Horizontal & Vertical Table Travel: (X) - 600mm (Y) - 200mm (Z) - 340mm Includes Digital Readout System & Swivel Table
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M579
This HM-54GV geared head vertical and horizontal turret milling machine now includes a inverter variable speed drive on the vertical spindle, with a powerful continuous-load 2.2kW / 3hp vertical motor and a 2hp motor for the horizontal spindle, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The hi-low geared head selector lever mounted on right side of milling head allows for quick change off speed range.
Other features include 3-Axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage LED work light, coolant system, X axis power feed unit, drill chuck, 1`` & 1-1/4`` horizontal arbors, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation.
Extra Features:
Swivel table
1`` & 1-1/4`` horizontal arbors
Features:
Electronic inverter variable spindle speeds
3 Axis digital readout system
Swivel table left & right with graduated scale
Mill head tilts to ??45?? left to right
450mm horizontally sliding and rotating ram
NT30 Horizontal and vertical spindles that are hardened and ground
Precision-ground dovetail slide-ways and table
Precision milling table incorporating machined T slots
Rear concertina slide-way cover
Forward and reverse button switch
Fine hand wheel operated quill feed
Swarf & splash tray
Spindle lock for quill
Metric dial graduations @ 0.02mm for X Y & Z-Axis
Vertical quill hand-wheel dial graduations @ 0.05mm
All slides utilise dovetail construction for maximum rigidity
Includes 1`` & 1-1/4`` arbors for the horizontal spindle
- Note: X travel maybe reduced due to digital readout scales and safety stops
Includes:
- Electronic inverter variable spindle speeds
- 3 Axis digital readout system
- X-Axis power-feed
- Safety cutter guard
- Swarf tray
- Coolant system
- LED work light
- Drill chuck & arbor
- NT30 to 3MT adaptor
- 2MT & 3MT adaptors
- M12 x 1.75mm Drawbar
Specifications:
ORDER CODE: M579
MODEL: HM-54GV
Digital Readout: 3-Axis Digital Readout
Type: Vertical & Horizontal
Table Size (mm): 1000 x 240
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: NT30
Longitudinal Travel (X-Axis) (mm): 600*
Cross Travel (Y-Axis) (mm): 200*
Vertical Travel (Z-Axis) (mm): 340
Type of Slides: Dovetail
Ram Travel (mm): 450
Spindle to Table (mm): 375
Spindle to Base: ~
Spindle Travel / Diameter (mm): 120 / 90
Throat Depth (max.) (mm): 640
Tilting Head (Left ~ Right): ??45??
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 40
End Milling Capacity (mm): 25
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): Manual
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional *
Power Feed - Vertical (Z-Axis) (mm/min): Optional *
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 160
Spindle Speeds Vertical (No./ rpm): Variable (100 - 2000)
Spindle Speeds Horizontal (No./ rpm): 9 (60 - 1350)
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): 1.5 / 2
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 900
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M579'
Visit us in-store at:
Sydney - Unit 1, 2 Windsor Road, Northmead NSW 2152
Melbourne - 4 Abbotts Road, Dandenong South VIC 3175
Brisbane - 625 Boundary Rd, Coopers Plains QLD 4108
Perth - 11 Valentine Street, Kewdale WA 6105
Adelaide - Unit 11/20 Cheltenham Parade, Woodville SA 5011
