Contact Seller
Features
| Title | HAFCO METALMASTER HM-32B |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | HAFCO METALMASTER |
| Model | HM-32B |
| Sale Price | $2,290 GST Exclusive |
| Listing Type | New |
| Stock Number | 922139 |
| RefCode | TA1266284 |
Description

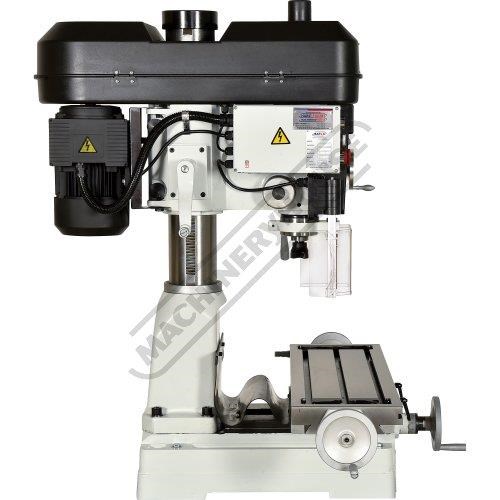

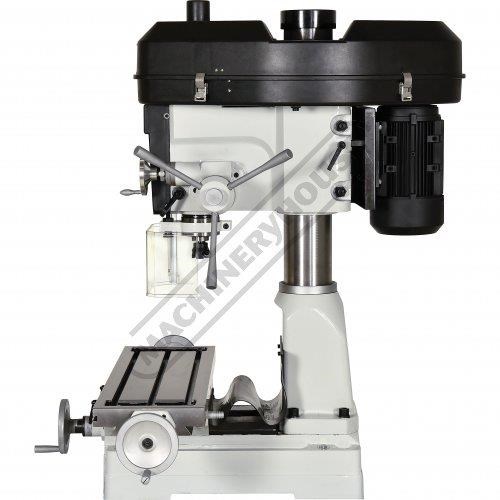

HM-32B Mill Drill - Belt Drive Table Travel: (X) - 540mm (Y) - 235mm (Z) - 310mm
HAFCO-METALMASTER HM-32B Mill Drill - Belt Drive Table Travel: (X) - 540mm (Y) - 235mm (Z) - 310mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M137

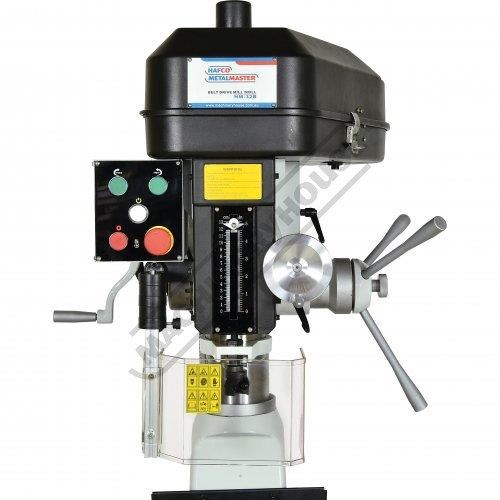

This new model HM-32B is a rugged and well made machine with good capacities and plenty of power, a good choice for a serious home engineer.

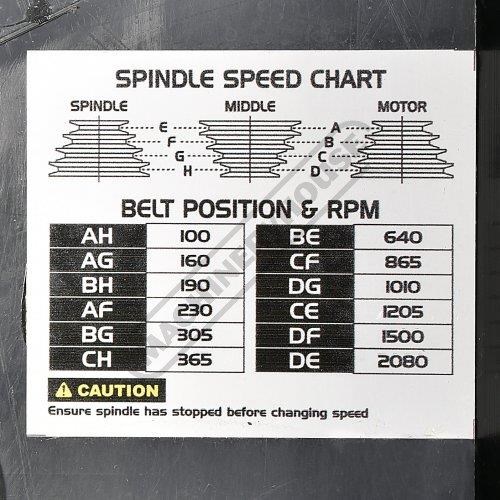

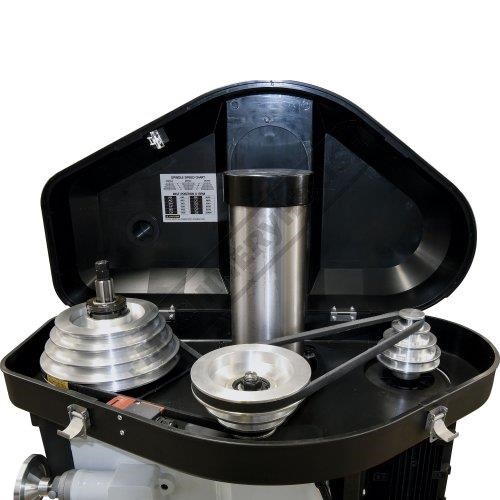

The belt driven head provides a useful range of 12 speeds, 100-2080rpm and is quiet in operation, the head can be re-positioned on the column with the aid of a handle driven rack and pinion drive.

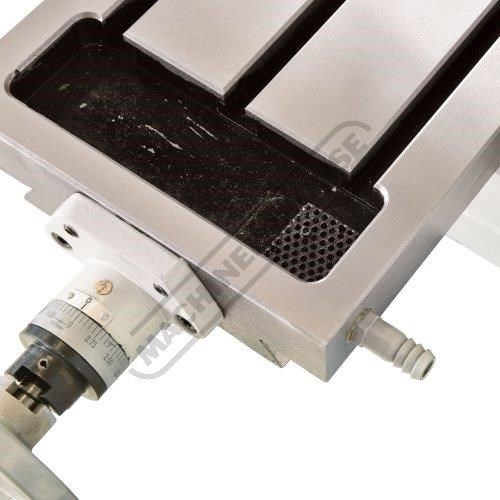

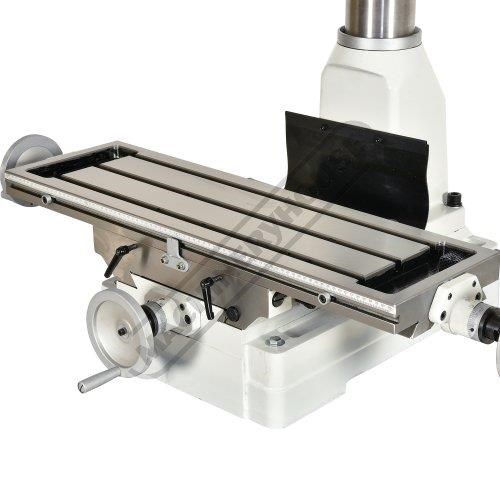

The table has T slots to allow the work to be directly mounting to table, or in a milling vice, with two large diameter control hand wheels with metric calibrations for the longitudinal axis.

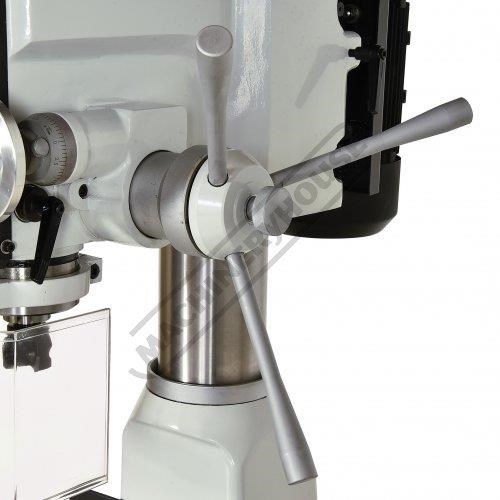

The fine downfeed control can be locked firmly in position when milling and the mill also features an easy-to-read depth stop.
Optional power feed provides smooth variable speed drive to longitudinal travel
Features:

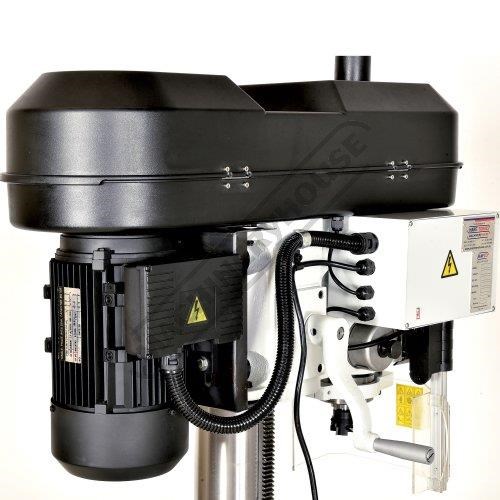

Quiet B section belt drive system
Milling head rotates 360?? on column
Extra large 820 x 240mm ground work table with T-slots
Adjustable leadscrew nuts eliminating backlash on both axis

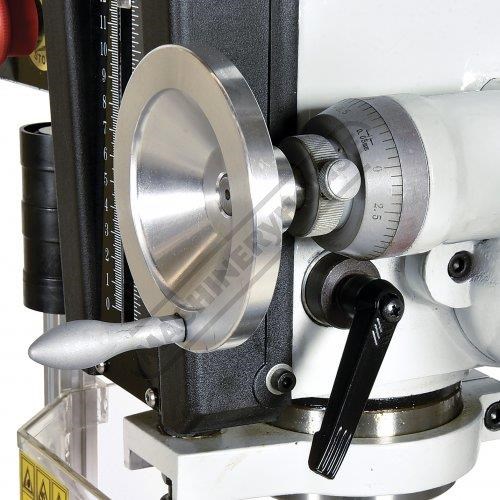

Fine feed hand wheel operating quill feed

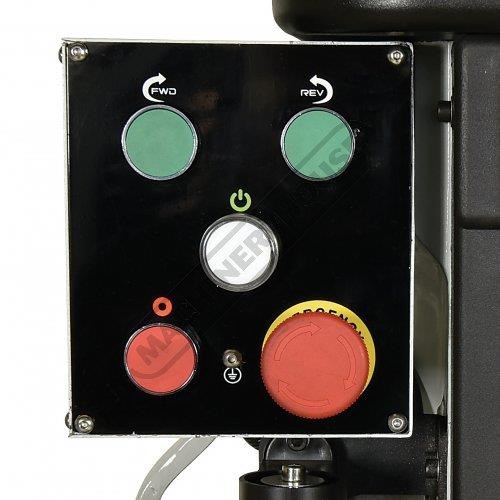

Forward and reverse on/off switch with emergency stop
3MT spindle with 75mm diameter quill

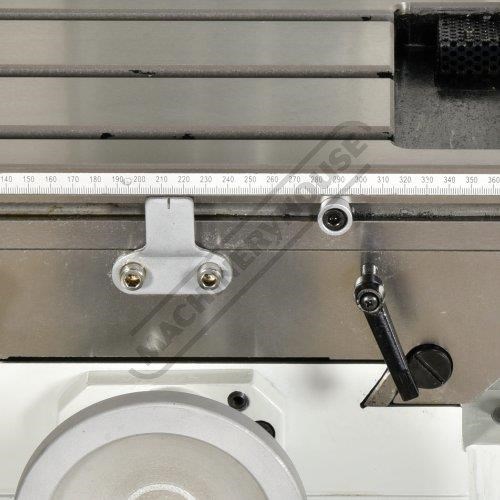

Adjustable table and drill length stops

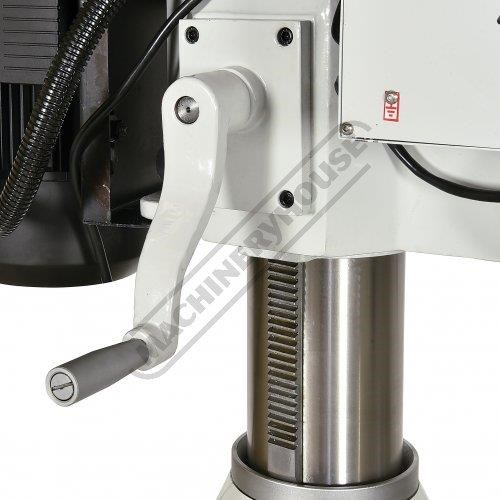

Rack and pinion wind-up head

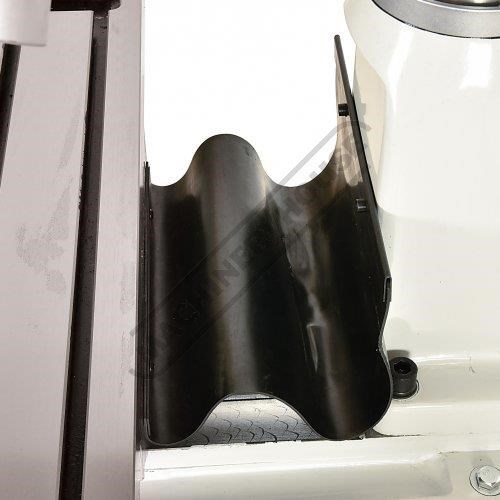

Rear slide-way cover and slide clamps on all axis
Spindle lock for quill
Table locks on both axis

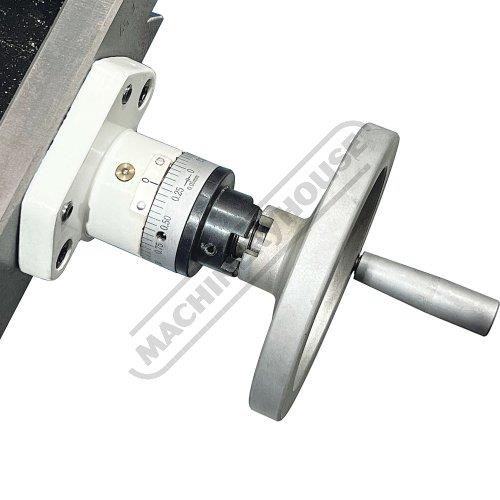

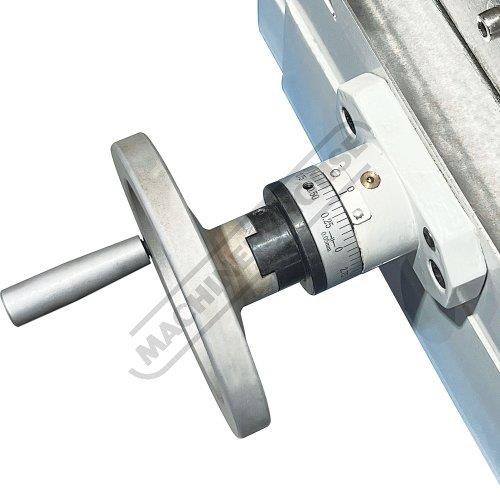

Metric dial graduations @ 0.05mm for X & Y axis
Includes:
- Drill chuck & arbor
- 3MT-2MT drill sleeve

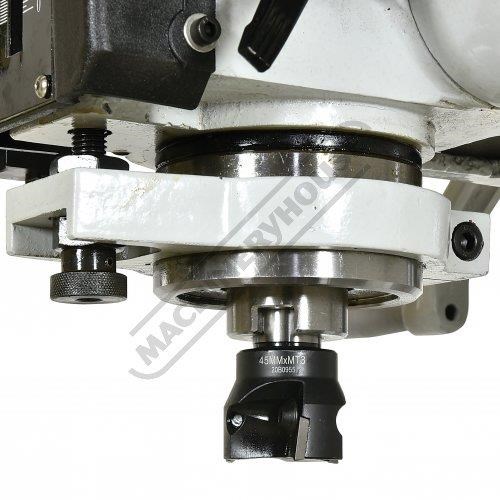

- Face cutter & arbor

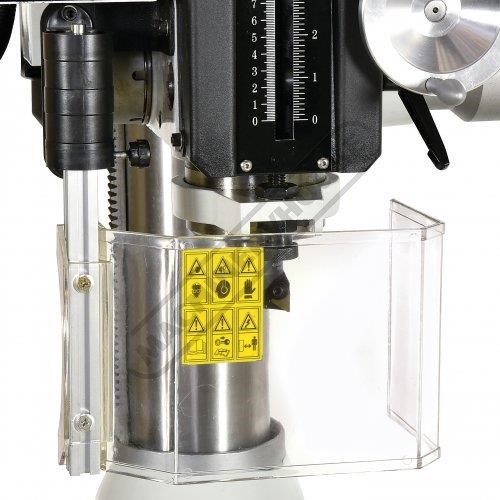

- Interlocked spindle safety guard
- 1/2`` x 12tpi whitworth drawbar
- M12 x 1.75mm metric drawbar
Specifications:
ORDER CODE: M137
MODEL: HM-32B
Digital Readout: Optional
Type: Vertical
Table Size (mm): 820 x 240
Column Type: ??115mm
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 540
Cross Travel (Y-Axis) (mm): 235
Vertical Travel (Z-Axis) (mm): 310
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 465
Spindle to Base: ~
Spindle Travel / Diameter (mm): 130 / 75
Throat Depth (max.) (mm): 202
Tilting Head (Left ~ Right): Fixed
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 31.5
End Milling Capacity (mm): 22
Face Milling Capacity (mm): 80
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): Optional
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 14
Work Table Load Capacity (kg): 55
Spindle Speeds Vertical (No./ rpm): 12 (100 - 2080)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~

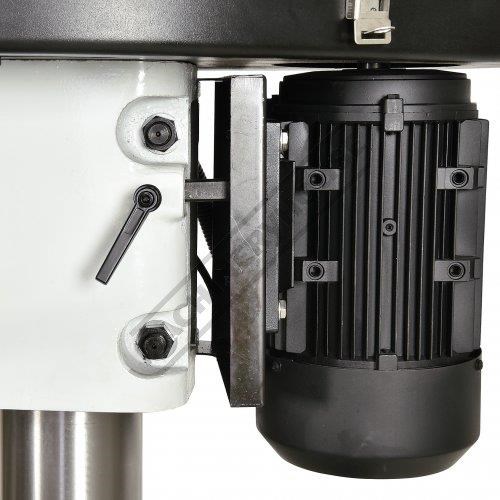

Motor Power - Vertical Spindle (kW / hp): 1.5 / 2
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 310
To Purchase Online Please Visit The Machineryhouse Website & Search For 'M137'
