Features
| Title | HAFCO METALMASTER BM-30A |
| Type | Engineering - Fabrication |
| Sub Type | Milling Machines |
| Make | HAFCO METALMASTER |
| Model | BM-30A |
| Sale Price | $12,700 GST Exclusive |
| Listing Type | New |
| Stock Number | 7063 |
| RefCode | TA1269502 |
Description

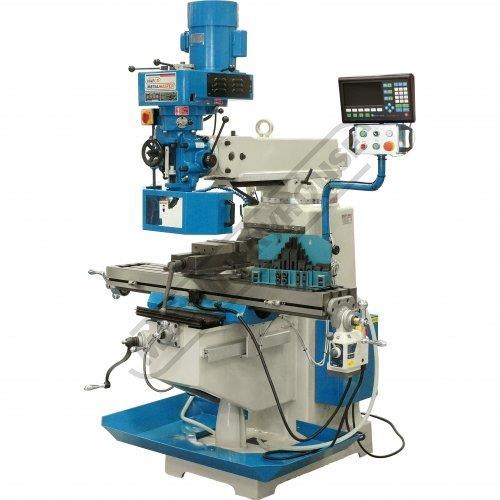

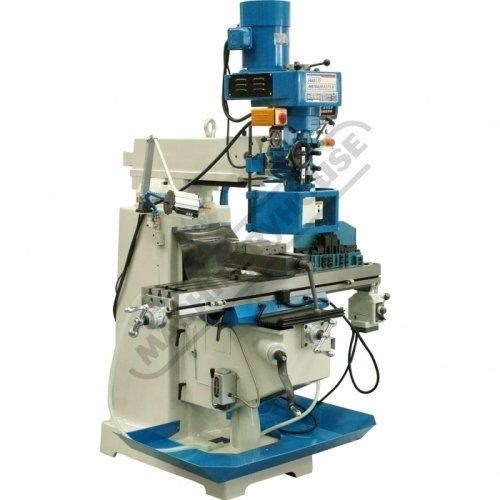

BM-30A Industrial Turret Milling Machine Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm Includes
HAFCO-METALMASTER BM-30A Industrial Turret Milling Machine Table Travel: (X) - 760mm (Y) - 360mm (Z) - 430mm Includes Digital Readout System, Vice & Clamp Kit
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M603D

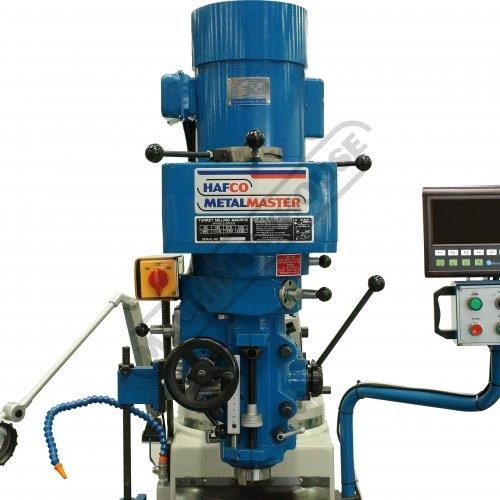

The BM-30A Industrial turret milling machine is manufactured in Taiwan to a strict precision engineering ultra-high tolerance & superior excellence to cope with many jobs set out by the professional machinist and importantly to deliver many years of valuable & reliable service.
This small but robust milling machine package is complete with a few of the most desirable features like, turcite B coated X & Y slide-ways that reduces friction to provide smooth table movement even when loaded up with a heavy job, hardened & ground work table & slide-ways, X-axis auto power-feed with adjustable feed stops, 3-axis digital readout counter plus X & Y scales fitted and also includes a machine vice & clamp kit set to get you started.
Another reliable feature in this range of precision milling machines is the manufacturing process of the main body & supports, it is made up form the highest quality Meehanite?? cast iron. The key to the undisputed success of Meehanite?? metals is the rigid application of its patented manufacturing process to provide ultimate strength & durability performance.
To conclude this BM-30A turret milling machine may be small in structure but holds its own when put to the test to perform its duties to produce quality precise parts.
Features:

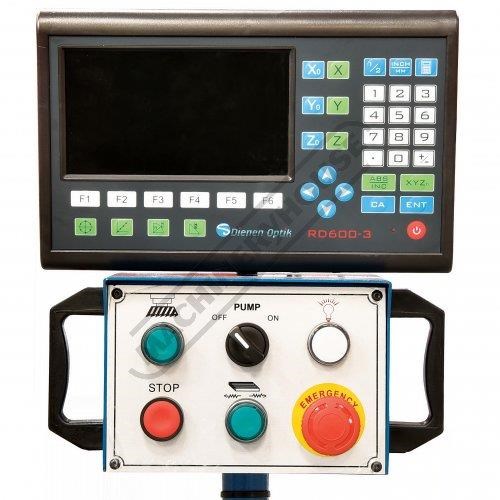

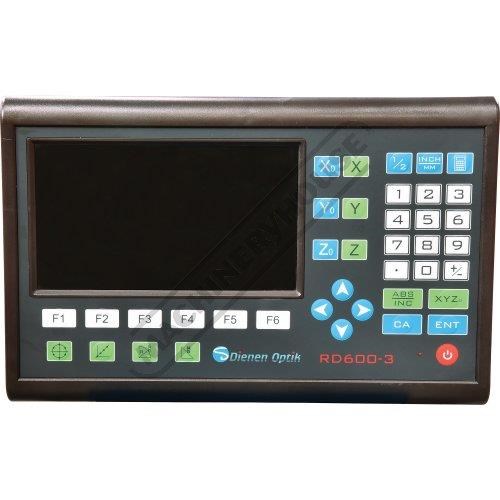

3-Axis digital readout counter fitted with 2-Axis X & Y scales only

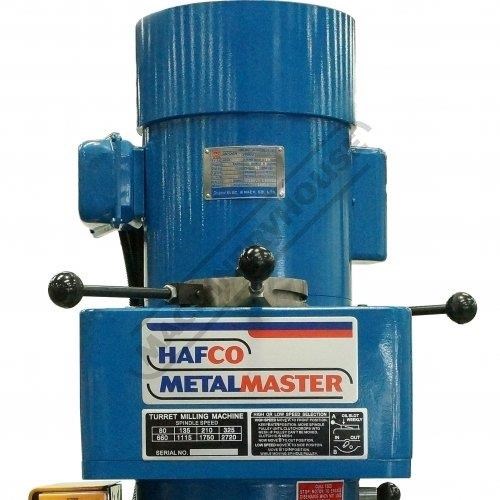

3HP 240V motor 8-speeds V-belt drive system
NT30 Spindle taper with a chrome & ground quill
Hardened & ground work table & slide-ways
Turcite B coated X & Y-Axis slide-ways reduces friction for smooth operation
All slides utilise dovetail construction for maximum rigidity
Meehanite casting for high strength & minimal deformation

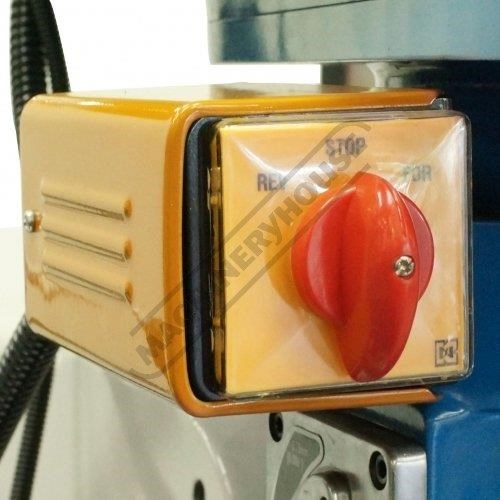

Quality electrics & overload protection in an easy access enclosure
Horizontal travelling ram mounted on a rotating base allowing repositioning of spindle
The ram incorporates a tail lug (spigot) to accept a slotting attachment etc.

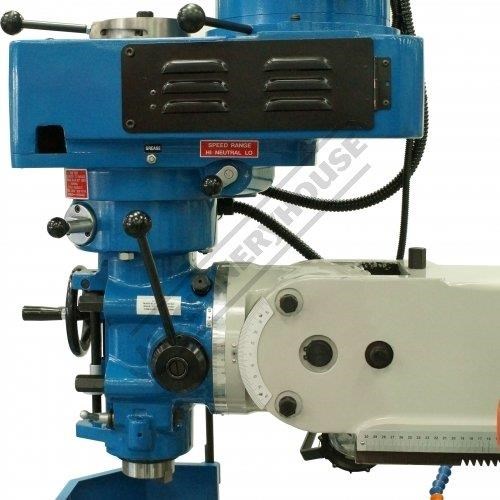

High / neutral and low gear selection lever to maximise torque
Align CE-300S X-Axis power-feed with adjustable micro switch feed stops

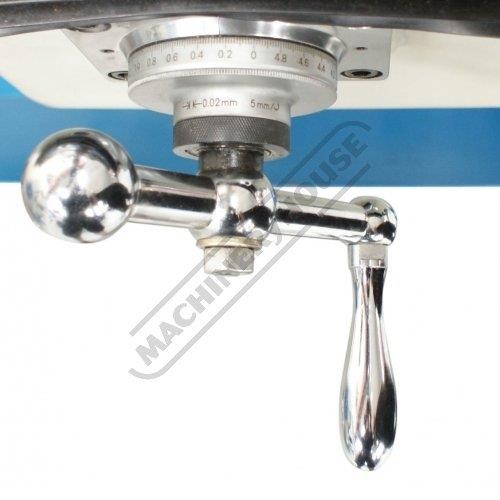

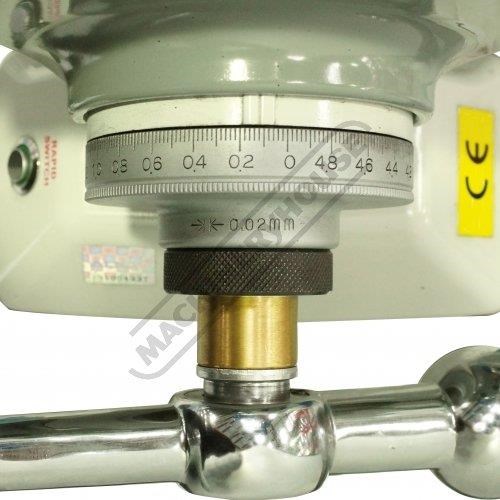

Metric dial graduations @ 0.02mm for X Y & Z-Axis

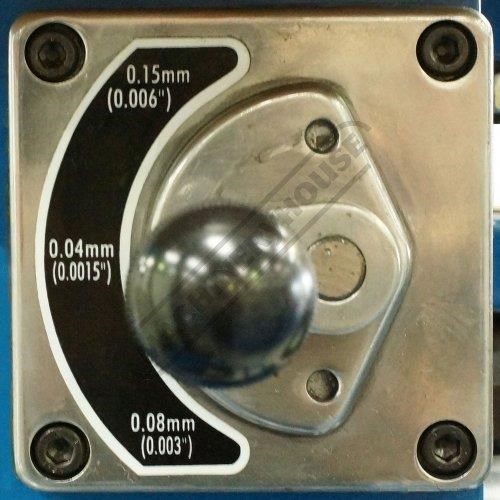

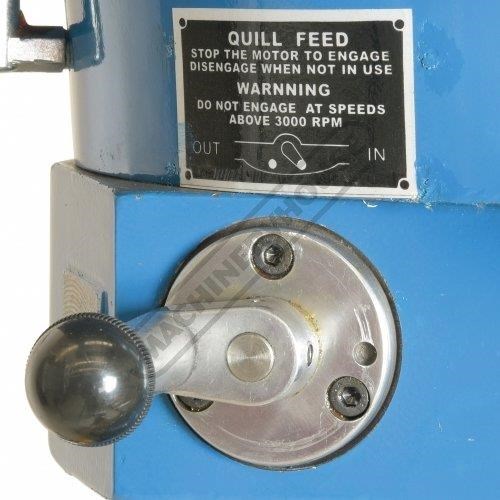

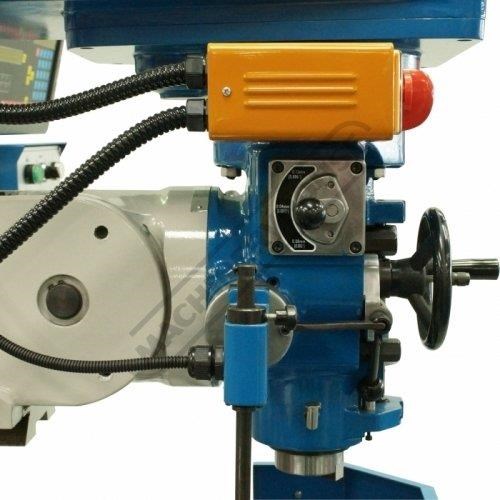

Automatic quill feed 0.015 0.04 0.08mm/rev

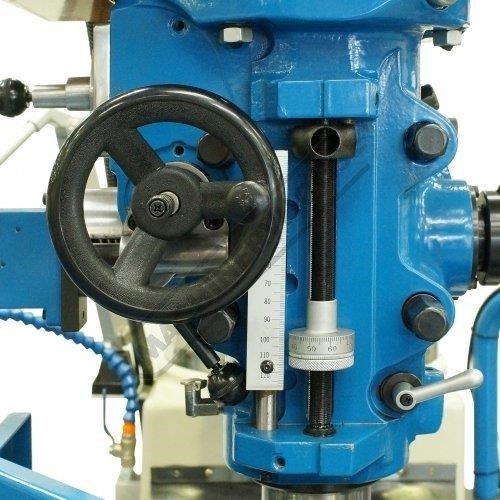

Automatic cut off depth stop on quill
Oil lubrication pump and reservoir

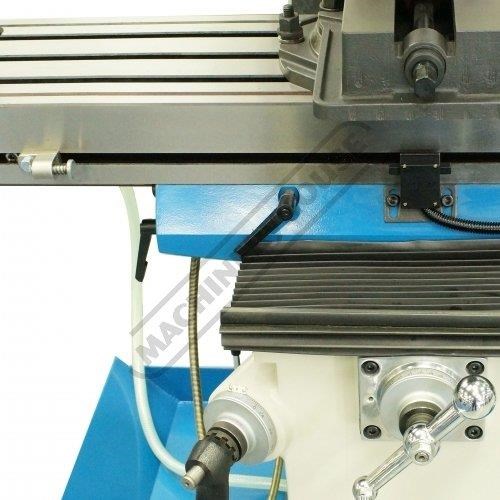

Slideway covers Y & Z-Axis
Mill head tilts to ??45?? forward and back
Mill head tilts to ??90?? left and right

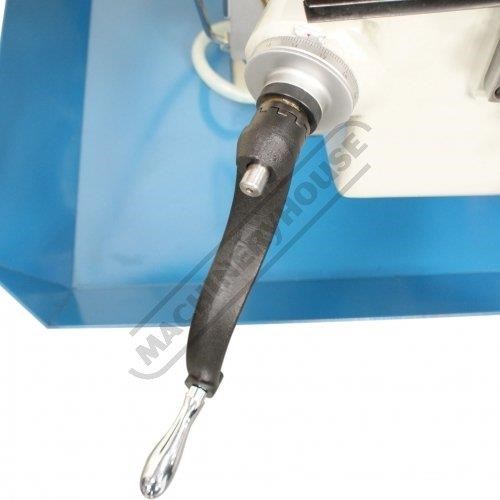

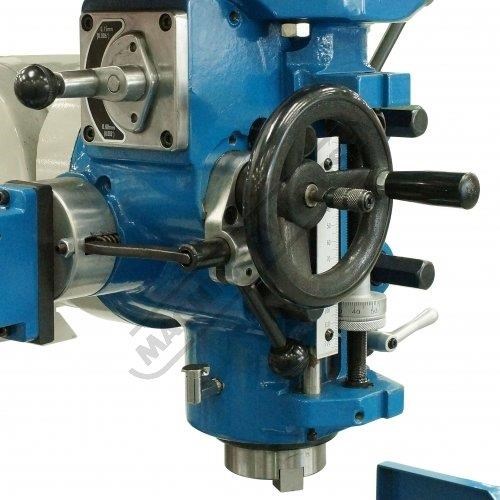

Manual quick action quill lever
Mechanical spindle brake

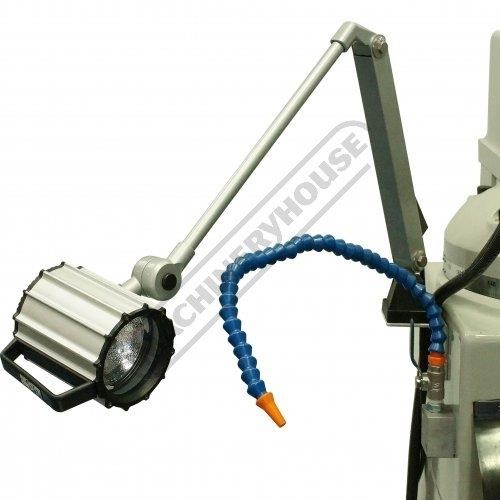

Low voltage LED work light
Tool box and manual
Includes:
- 3-Axis digital readout counter fitted with 2-Axis X & Y scales only
- One-shot oil lubrication pump and reservoir
- Drawbar M12 thread
- Coolant system
- Slideway covers
- X-Axis power-feed
- LED Work light
- Machine vice (150mm)
- Clamp kit

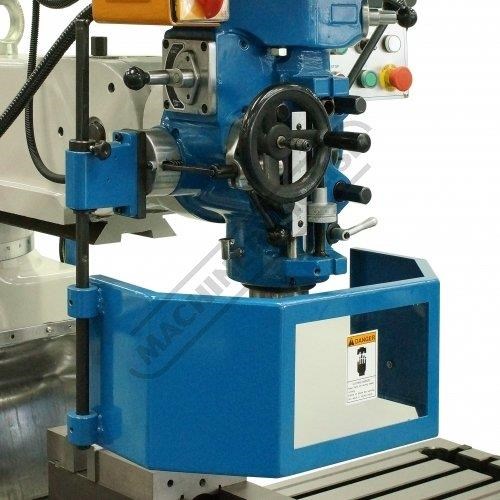

- Safety cutter guard
- Swarf tray
Specifications:
ORDER CODE: M603D
MODEL: BM-30A
Digital Readout: 3-Axis Counter, X, Y Scales
Type: Vertical
Table Size (mm): 1270 x 254
Column Type: ~
Spindle Taper - Vertical: NT30
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 760
Cross Travel (Y-Axis) (mm): 360
Vertical Travel (Z-Axis) (mm): 430
Type of Slides: Dovetail
Ram Travel (mm): 520
Spindle to Table (mm): 505
Spindle to Base: ~
Spindle Travel / Diameter (mm): 127 / 86
Throat Depth (max.) (mm): 740
Tilting Head (Left ~ Right): ??90??
Tilting Head (Forward ~ Back): ??45??
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): 0.015 / 0.04 / 0.08
Power Feed - Longitudinal (X-Axis) (mm/min): 20 - 2000
Power Feed - Cross (Y-Axis) (mm/min): Optional
Power Feed - Vertical (Z-Axis) (mm/min): Optional
Table T-Slot Size (inch / mm): 5/8
Work Table Load Capacity (kg): 250

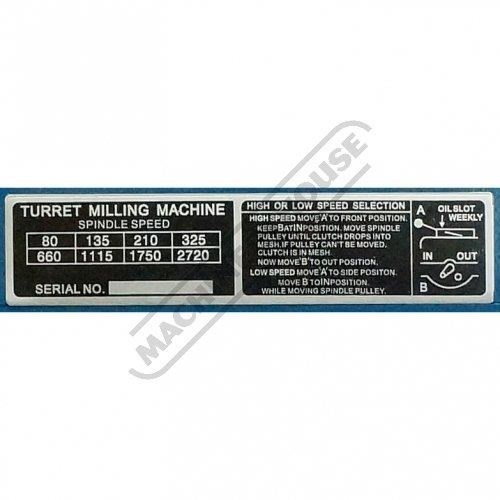

Spindle Speeds Vertical (No./ rpm): 8 (80 - 2720)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 2.2 / 3
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 20
Nett Weight (kg): 1100
